Infrastructure & Equipement
Allnyx’s state-of-the-art plant is situated at Dabhasa near Vadodara city having 80,000 sq. ft. land area with plant construction of 15000 sq. ft.. The city is very well connected with Express Roads, Railways and Airways with all major cities like Delhi, Mumbai, Bangalore and Ahmedabad.
STENCIL PRINTER HORIZON 03IX, DEK, USA
- Process alignment capability 2 Cpk @ ± 20µm 6-Sigma
- Machine alignment capability 2 Cpk @ ± 12.5µm 6- Sigma
- Board Size: 510mm*510mm
- Cycle Time: 9Sec/Board

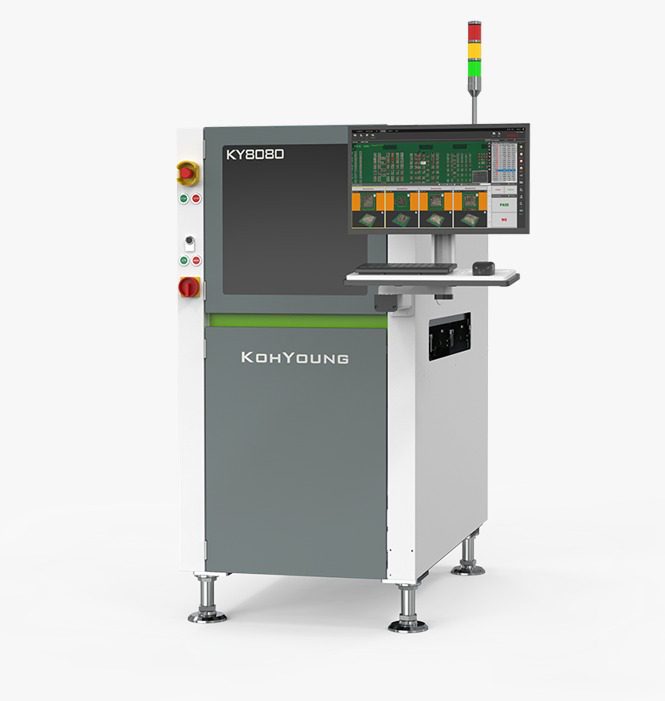

Solder Paste Inspection KY 8080 Koh young - KOREA
- 3D Solder Paste Inspection Machine
- True 3D Volume Measurement
- High Accuracy and Repeatability
- Solder Paste Printing Optimization
- Histograms, X-bar & R-Chart, X-bar & S-chart, Cp & Cpk, and % of Gage R&R
- Real-time Data Visualization
- Warp Compensation Technology
- Real-time, Automatic Pad-Reference Teaching

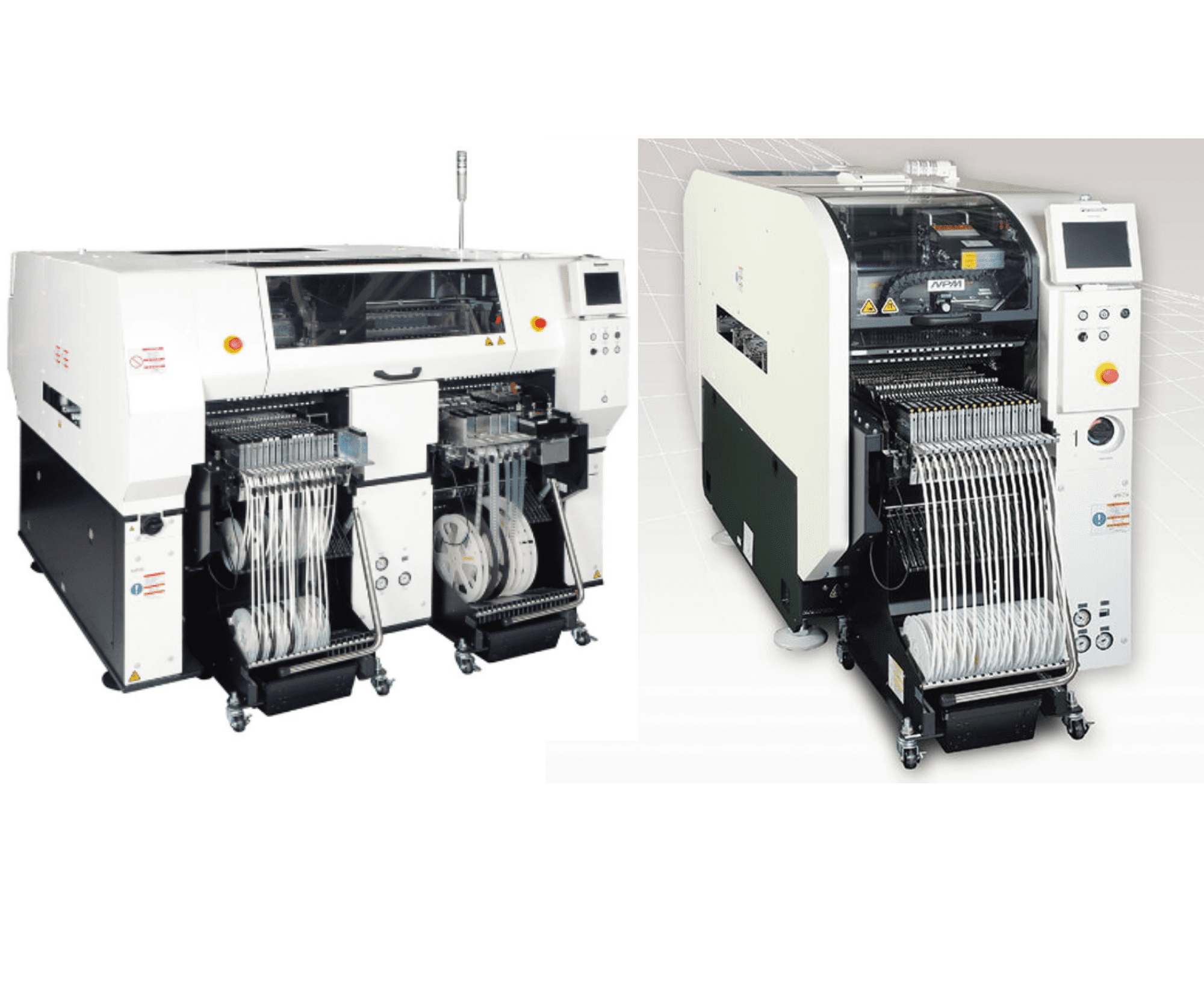

Pick & Place machine AM100 & NPM-D3A, Panasonic, Japan
- 120 + 68 Feeders
- Automatic 20 Tray Changer
- Placement Accuracy: ±30 micron Cpk ≥1.0
- Part Handling: 01005 to 120x90mm
- Intelligent Tape feeders & Stick Feeders
- Board Size: 510mm to 490mm
- Combined Rated Speed: 120,000 cph
- PanaCim Software for component traceability

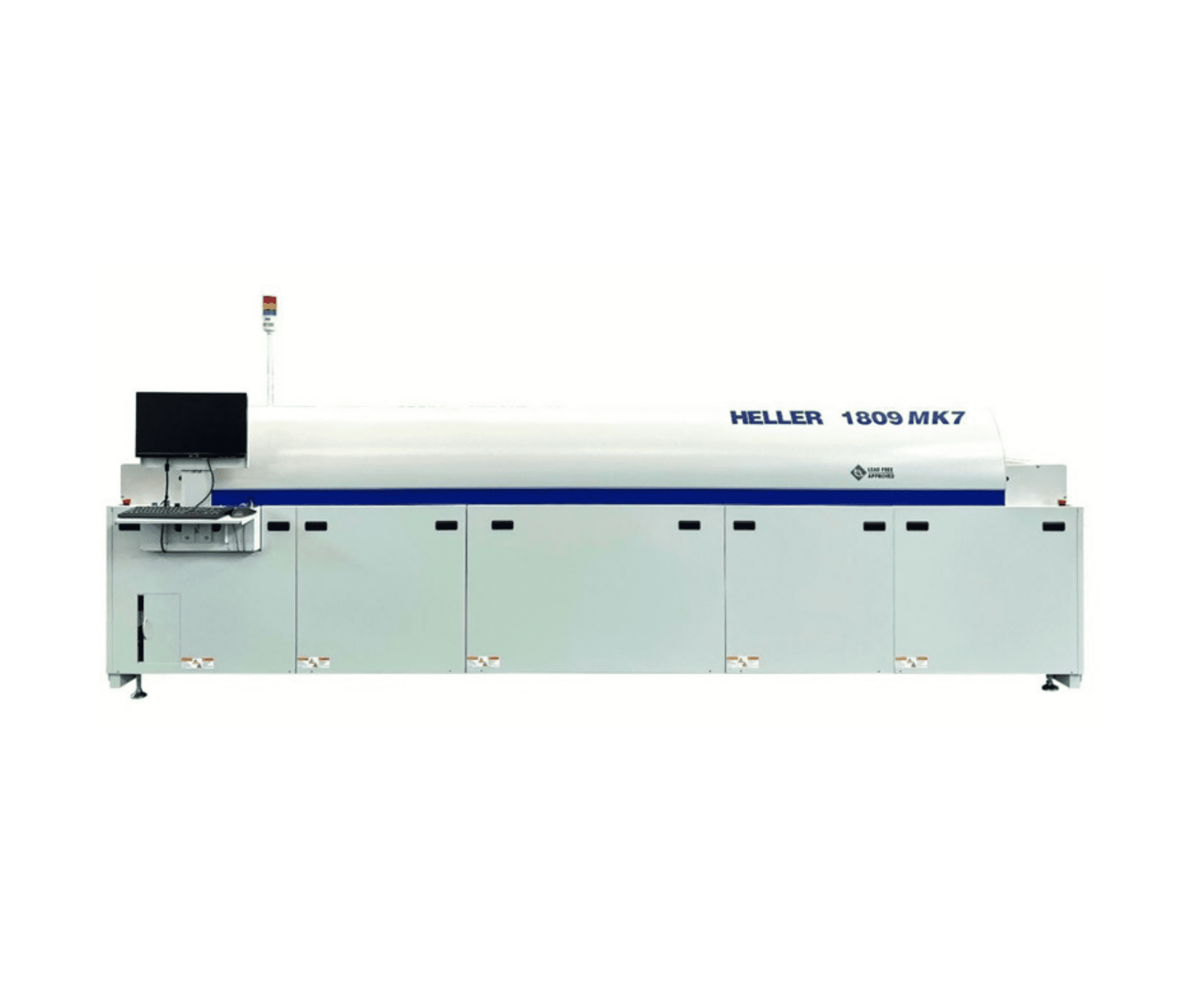

REFLOW OVEN 1809 MK7, HELLER USA
- 9 Top and 9 Bottom Heating Zones
- 2 Cooling Zones
- Efficient Heat transfer
- Advanced 7 Thermocouple PCB profiling (KIC make)

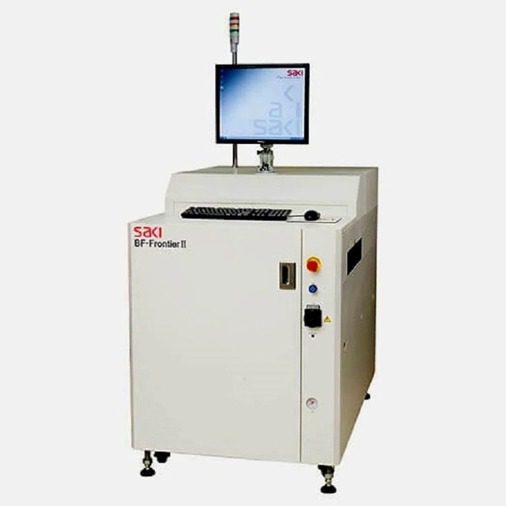

Auto Optical Inspection FRONTIER SAKI - JAPAN
- High-Speed, High-Precision 2D Visual Inspection
- Multiple Inspection Process Support (SMT & THT)
- Full-Board Imaging for High Speed Inspection
- Simultaneous Double-Sided Scanning
- M2M Integration Capabilities with PnP Machine
- Offline Debugging
- Feedback from AOI to Surface Mount Machine

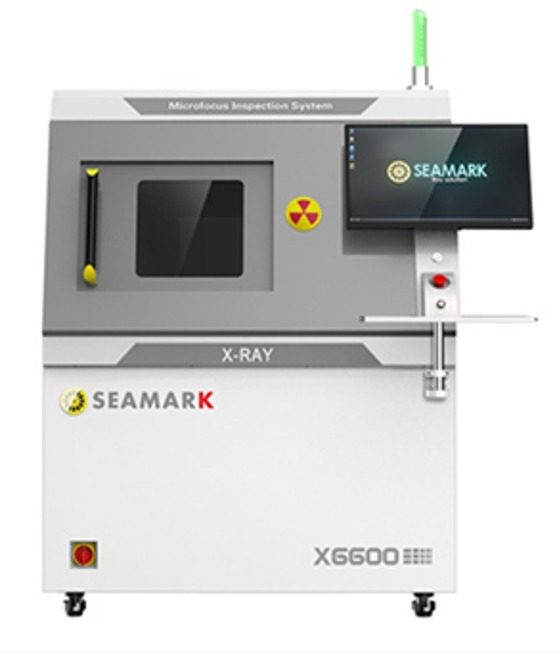

2.5D X-Ray Machine X6600 SEAMARK - CHINA
- A high-resolution design can obtain the best image in a very short time for components like BGA, FBGA, QFN, LGA
- Infrared automatic navigation and positioning, quickly select the shooting location
- CNC detection mode, fast automatic detection for multi-point array
- Oblique multi-angle inspection makes it easier to detect sample defects
- The X-ray tube and FDP can be rotated at the same time (0-60°), making the detection image more clear and intuitive

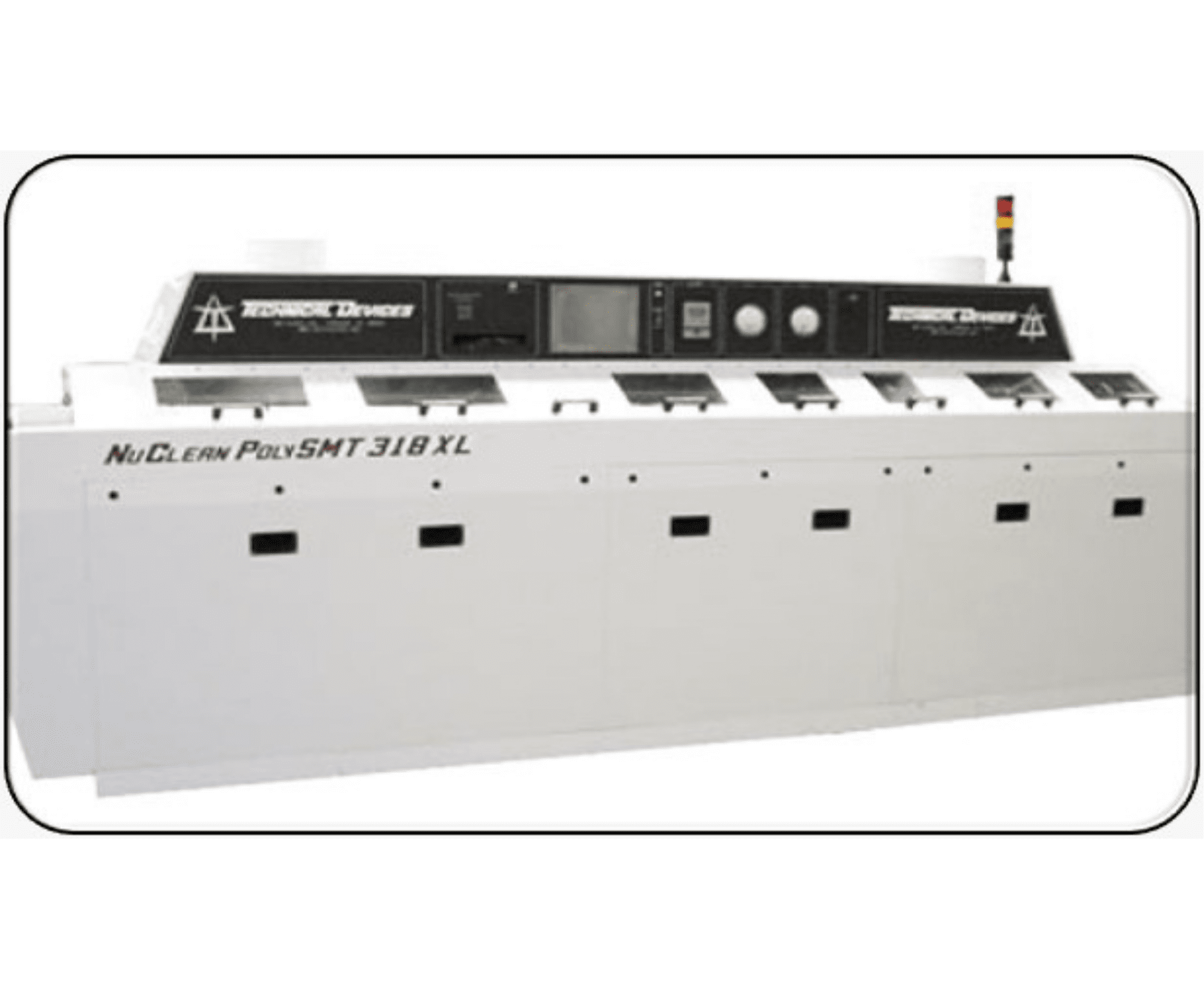

PCB CLEANING MACHINE POLYSMT 318, NU/CLEAN, USA
- Contain High Efficiency Blowers
- Hybrid Power Option
- Quick Disconnect Spray Bars
- Chemistry Isolation
- Touch Screen Control System
- Consta-Temp VFD system
WAVE SOLDERING MACHINE STALLION 321FC JW, EMST, INDIA
- Spray Fluxer with Air Knife
- 2 Pre-heating Zones
- Dual Jet Wave
- Dedicated Solder Baths for Lead-Free and Leaded Assembly
- Where is Allnyx's manufacturing facility located?
-
Allnyx's facility is located at Dabhasa, near Vadodara city, Gujarat, India, on an 80,000 sq. ft. land area with 15,000 sq. ft. of plant construction. The location is well connected by Express Roads, Railways, and Airways to major cities including Delhi, Mumbai, Bangalore, and Ahmedabad.
- Is Allnyx's manufacturing facility certified?
-
Yes. Allnyx's facility is ISO 9001:2015 certified, reflecting its quality management standards.
- What equipment does Allnyx use for PCB assembly?
-
Allnyx's equipment includes a Stencil Printer (Horizon 03iX, DEK USA), Solder Paste Inspection machine (KY 8080, Koh Young Korea), Pick & Place machines (AM100 & NPM-D3A, Panasonic Japan), a Reflow Oven (1809 MK7, Heller USA), Automated Optical Inspection (Frontier, SAKI Japan), a 2.5D X-Ray machine (X6600, Seamark China), a PCB Cleaning Machine (PolySMT 318, Nu/Clean USA), and a Wave Soldering Machine (Stallion 321FC JW, EMST India).
- What is the placement accuracy of Allnyx's Pick & Place machines?
-
Allnyx's Panasonic AM100 & NPM-D3A Pick & Place machines offer placement accuracy of ±30 microns with a Cpk ≥1.0, and a combined rated speed of 120,000 components per hour.
- Does Allnyx use X-ray inspection for quality control?
-
Yes. Allnyx uses a 2.5D X-Ray machine (Seamark X6600) for high-resolution inspection of components such as BGA, FBGA, QFN, and LGA packages.
- How can I see or inquire about Allnyx's manufacturing infrastructure?
-
You can inquire directly through the "Inquire Now" link on the Infrastructure page, or contact Allnyx via the Contact Us page, email sales@allnyx.com, or call +91 98258 95908.
